Key takeaways
- Start with the site: installation location, viewing distance, screen size and lighting decide the right SMD screen.
- Pixel pitch should match how close people will stand. Smaller pitch means sharper detail at close range, and usually a higher price.
- Outdoor screens need higher brightness and weather protection. Indoor screens should not be used outdoors.
- Compare quotations by what they include: screen, controller, CMS, structure, installation, warranty and taxes.
Choosing an SMD screen in Pakistan starts with your installation location, viewing distance, screen size and budget. An indoor display for a retail store has very different requirements from an outdoor advertising screen exposed to sunlight, rain and dust.
DIGIX supplies, installs and supports indoor and outdoor SMD LED screens across Pakistan. This guide explains how SMD screens work, how to choose the right specification, what affects the price, and what to share when you request a quotation.
See your SMD screen in 3D before you order
Choose size, frame and content in the DIGIX 3D Configurator, then send it to us for a quotation.
In this guide
1. What Is an SMD Screen?
SMD stands for Surface Mounted Device. In an SMD LED screen, small LED packages, each containing red, green and blue chips, are mounted directly onto circuit boards called modules. Modules are fitted into cabinets, and cabinets are joined to build a screen of almost any size.
Compared with older LED displays that used larger, separate bulbs, SMD technology allows pixels to sit much closer together. That gives smoother images, more natural colours and sharper text, even at shorter viewing distances. This is why SMD screens are used both indoors and outdoors, from shop displays to roadside billboards.
2. Indoor vs Outdoor SMD Screens
| Factor | Indoor SMD screen | Outdoor SMD screen |
|---|---|---|
| Typical use | Retail stores, malls, offices, lobbies, events, control rooms | Billboards, building facades, stadiums, shop fronts, roadside advertising |
| Viewing distance | Usually close | Usually further away |
| Pixel pitch | Finer pitch for close viewing | Larger pitch is often suitable |
| Brightness | Comfortable for indoor lighting | Much higher, to stay visible in sunlight |
| Protection | Indoor environment | Weather protection (IP rating), drainage and ventilation |
Indoor screens should not be installed outdoors unless their specifications clearly support it. For outdoor projects in Pakistan, also plan for summer heat, dust, monsoon rain and safe electrical connections.
3. Pixel Pitch and Viewing Distance
Pixel pitch is the distance between the centres of neighbouring pixels, measured in millimetres (for example P2.5 = 2.5 mm). A smaller pitch packs more pixels into the same area, so the image stays sharp when people stand closer. It also usually increases the cost.
A common starting point is that the closest comfortable viewing distance in metres is roughly equal to the pixel pitch in millimetres. Use this table as a rough guide, then confirm with a demonstration of your own content:
| Pixel pitch | Approximate closest viewing distance | Typical use |
|---|---|---|
| P1.5 – P2 | About 1.5–2 m and beyond | Boardrooms, control rooms, premium retail |
| P2.5 – P3 | About 2.5–3 m and beyond | Shops, malls, lobbies, indoor events |
| P4 – P5 | About 4–5 m and beyond | Large indoor walls, stages, semi-outdoor |
| P6 – P8 | About 6–8 m and beyond | Shop fronts and outdoor screens viewed from the road |
| P10 and above | About 10 m and beyond | Large outdoor billboards and facades |
Small text and detailed product images need a finer pitch than video or large graphics. Screen size also matters: a larger screen has more total pixels, so it can display more detail at the same pitch.
4. How to Choose the Right SMD Screen
The right SMD screen depends on where it will be installed, how close people will stand and what you need to display. Before ordering, check these points:
- Viewing distance and pixel pitch: smaller pixel pitches show finer detail at close range. Ask to view your actual content on the proposed screen before choosing.
- Screen dimensions and resolution: confirm both the physical size and the total pixel resolution. These decide how clearly the screen can show small text, product images and videos.
- Lighting conditions: choose brightness suited to the location. A screen facing direct sunlight has very different requirements from one inside a showroom.
- Outdoor protection: for exposed installations, confirm the IP rating, drainage, ventilation and protection of electrical connections.
- Maintenance access: check whether servicing is from the front or the rear, and allow enough space in the design.
- Power and structure: have the electrical supply, mounting structure and site conditions assessed before installation.
- Content operation: decide whether you need local playback, scheduled content or remote management across several locations.
- After-sales support: get written warranty terms, service arrangements and spare-parts availability.
When comparing suppliers, ask for the proposed model’s datasheet and a demonstration with your own content. Compare the specifications, scope of supply and warranty terms in writing before you decide.
For screens built from multiple panels, also read our video wall guide.
5. SMD Screen Price in Pakistan: What Affects Your Quotation?
The price of an SMD screen in Pakistan depends on the display specification and the installation scope. To compare quotations fairly, check what each supplier includes rather than comparing the screen price alone.
- Screen dimensions: width and height decide the display area, number of cabinets and supporting structure.
- Pixel pitch: a smaller pitch puts more pixels in the same area and generally increases cost.
- Indoor or outdoor installation: outdoor screens need higher brightness and weather protection.
- Display components: LED packages, driver ICs, power supplies and cabinet construction affect both price and performance.
- Controller and content management: confirm whether the video processor, media player, CMS licence and any recurring charges are included.
- Installation work: steel structure, electrical wiring, access equipment, transport and commissioning all affect the total cost.
- Warranty and support: compare coverage, exclusions, spare parts and maintenance terms.
- Taxes: confirm whether applicable taxes are included.
Request an SMD screen quotation from DIGIX
Share your city, installation photographs, required screen width and height, indoor or outdoor location, approximate viewing distance and intended content. These details help DIGIX recommend a suitable display and prepare a quotation with a clear scope of supply. You can also design the screen in the 3D Configurator and send it with your request.
6. Content Management
A screen is only as useful as the content it shows. With a content management system (CMS), you can:
- Schedule content in advance
- Update adverts and promotions remotely
- Manage several screens from one dashboard
- Show different content on different screens at the same time
This is especially useful for franchises, retail chains and organisations with branches in several cities. See the DIGIX CMS Player.
7. Where SMD Screens Are Used
- Retail and shopping centres: promotions, new arrivals and brand campaigns.
- Corporate offices: reception branding, presentations and internal communication.
- Events and exhibitions: stage backdrops, live feeds and product launches.
- Education and healthcare: announcements, guidance and awareness campaigns.
- Outdoor advertising: digital billboards that can change campaigns instantly without printing.

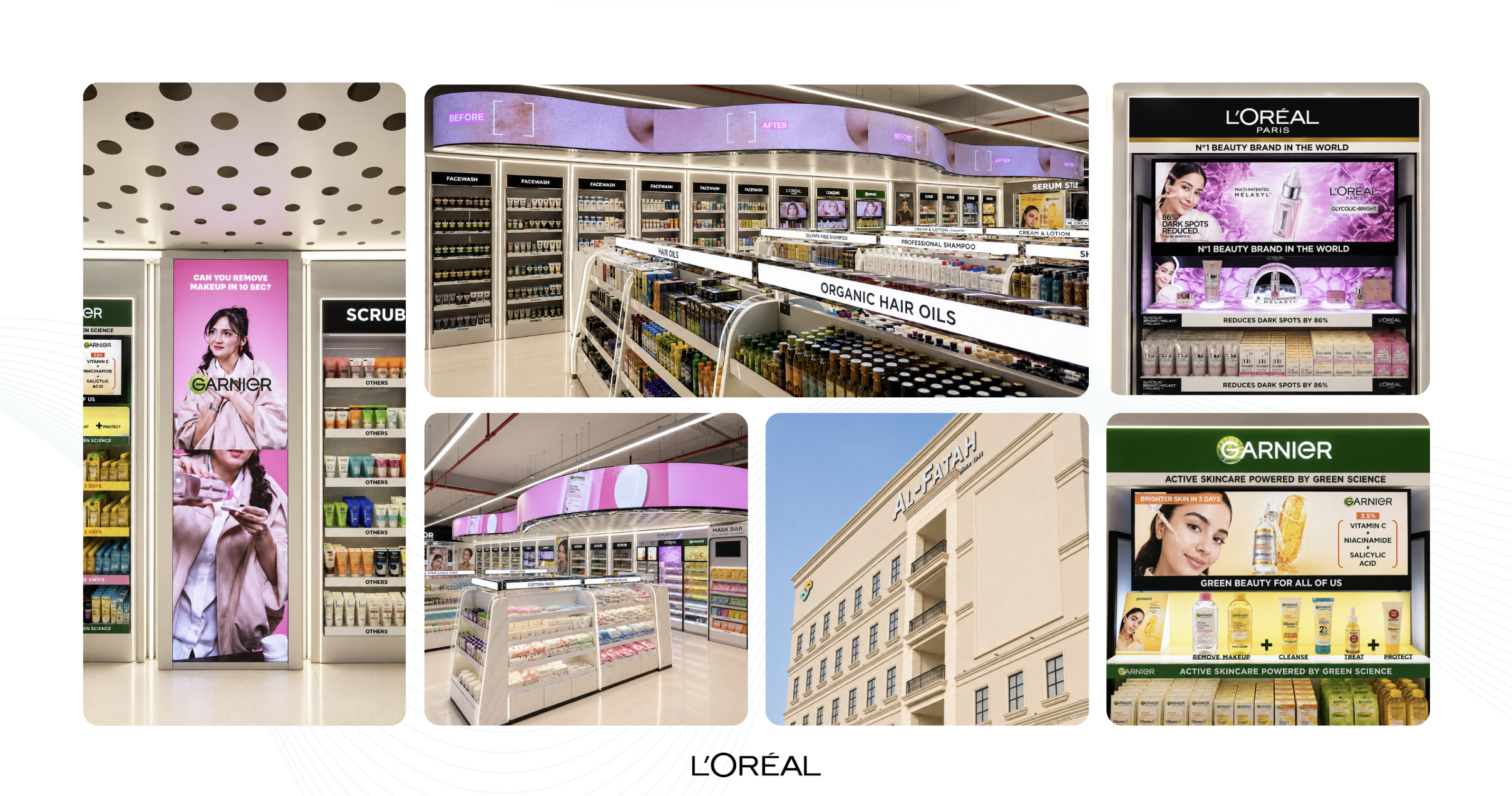

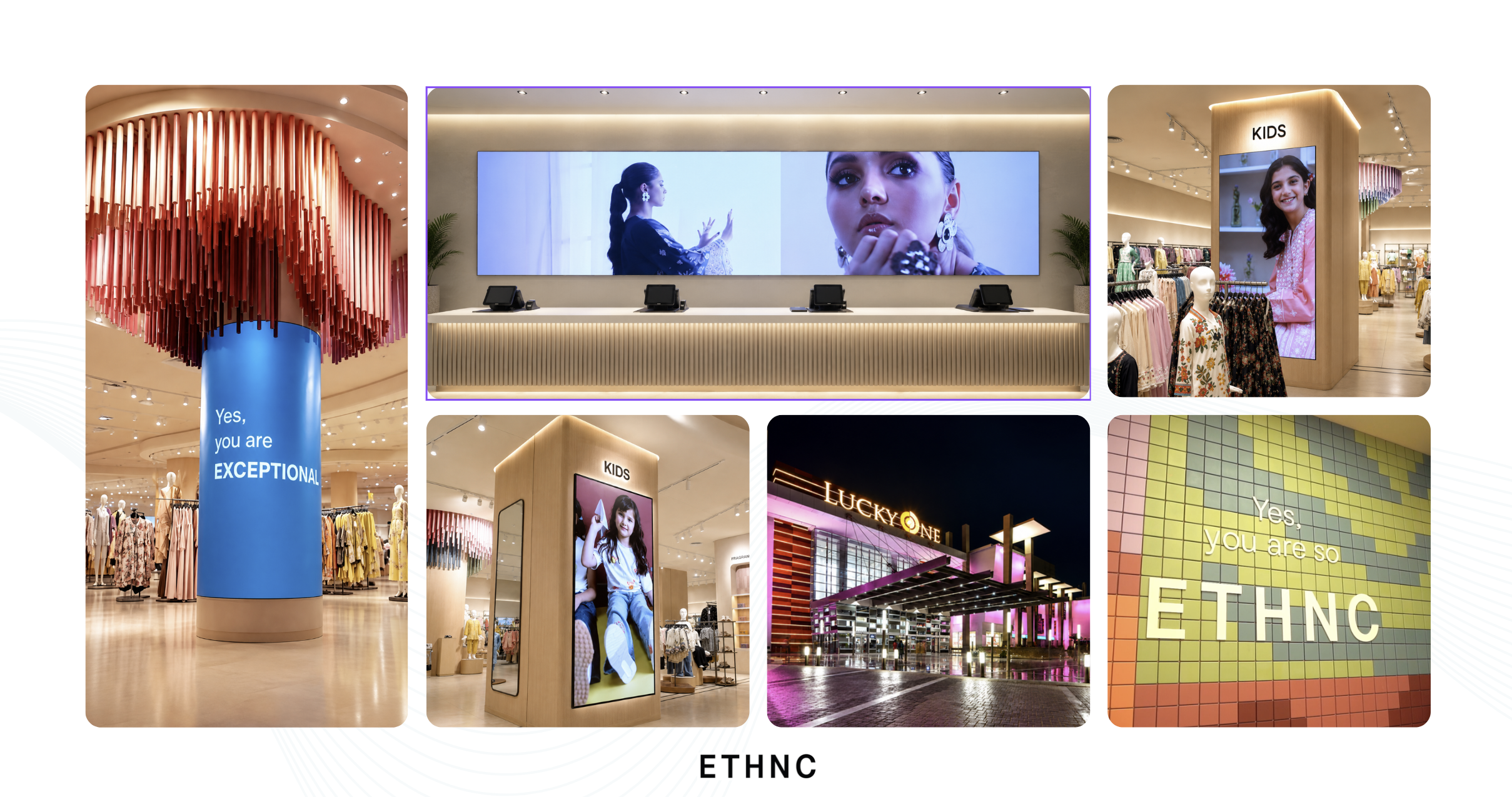

8. DIGIX SMD Screen Installations in Pakistan
DIGIX has worked in digital signage since 2015 and is part of the Adsells group, established in 1952. Brands DIGIX has worked with include Shell, Nestlé, HBL, Standard Chartered, Toyota, Samsung, Unilever, Jazz, Telenor, KIA and Pizza Hut, with teams in Lahore, Karachi, Islamabad, Gujranwala, Faisalabad, Multan and Rahim Yar Khan.
9. Frequently Asked Questions About SMD Screens in Pakistan
What does SMD stand for?
SMD stands for Surface Mounted Device. In an SMD LED screen, LED packages are mounted onto circuit boards to form the display.
How much does an SMD screen cost in Pakistan?
The quotation depends on screen dimensions, pixel pitch, component specifications, indoor or outdoor use and installation requirements. Ask for an itemised quotation covering the display, controller, structure, installation, taxes and support.
What is the difference between indoor and outdoor SMD screens?
Indoor screens are designed for indoor lighting and closer viewing. Outdoor screens need higher brightness and weather protection suited to their location. An indoor screen should not be installed outdoors unless its specifications explicitly support that use.
Which pixel pitch should I choose?
Choose pixel pitch according to viewing distance, screen size and content. As a rough guide, the closest comfortable viewing distance in metres is about equal to the pitch in millimetres. Compare your own text, images and videos on the proposed screen before ordering.
Can I update screen content remotely?
Yes, when the installation includes a compatible player, content management system and network connection. Confirm scheduling features, supported media formats, licence charges and what happens if the internet disconnects.
Can I see how the screen will look before ordering?
Yes. Use the DIGIX 3D Configurator to choose size and finish and preview your screen, then send it to us for a quotation.
What information does DIGIX need for a quotation?
Share your city, site photographs, required screen width and height, indoor or outdoor location, approximate viewing distance and intended content. Include any requirements for remote management, operating hours or installation deadlines.
